RISC Platform

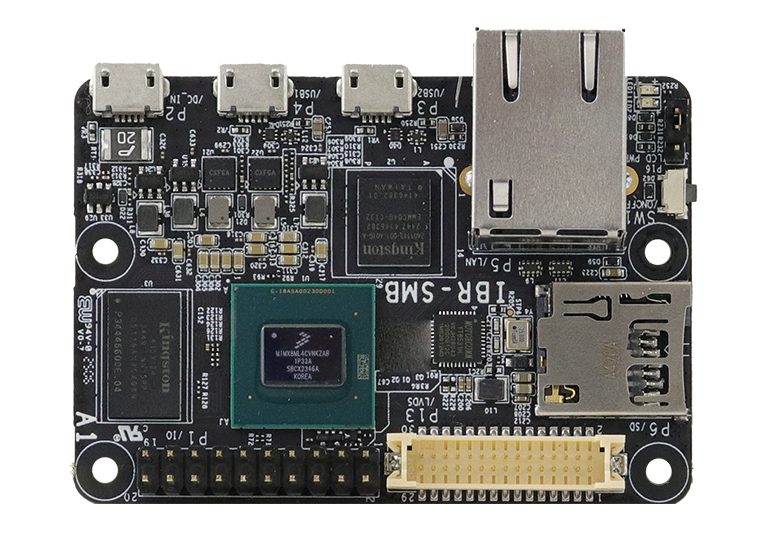

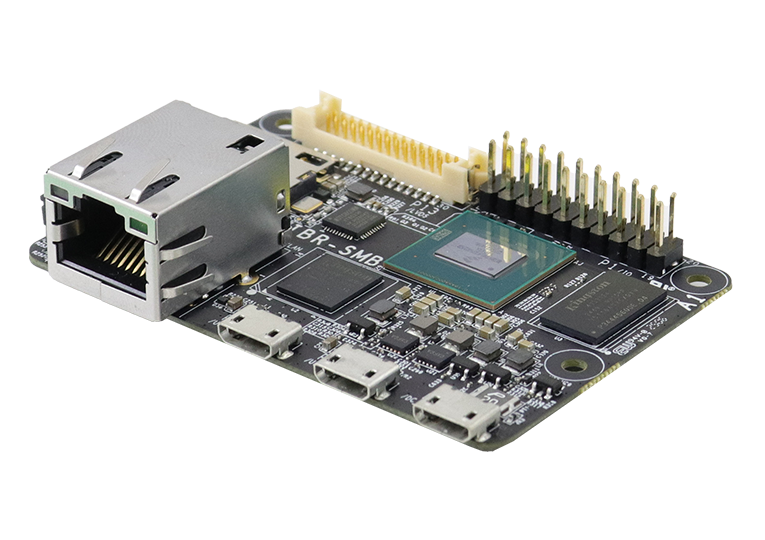

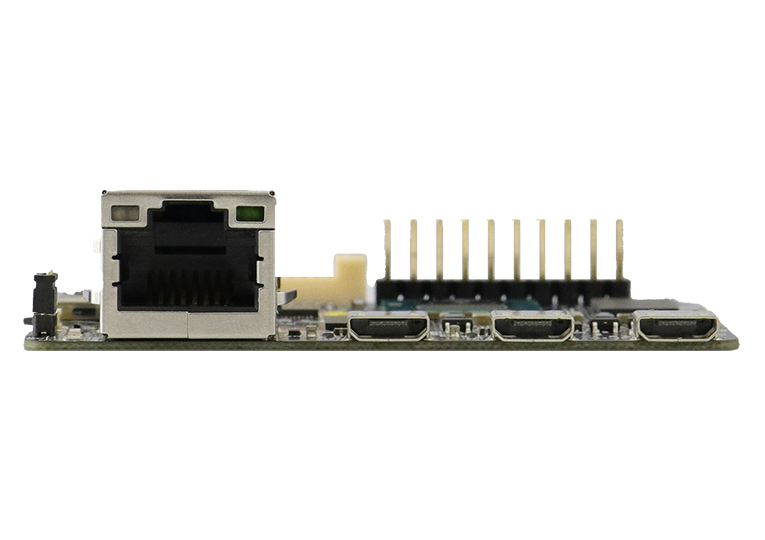

IBR-SMB

NXP ARM® Cortex-A53 i.MX8M Plus Lite Processor Ultra-Compact SBC

  • 1GB DDR4, 4GB eMMC
  • 1x RJ45, 1x MicroSD, 2x USB OTG
  • 2-ch LVDS 8-lane WTB connector
  • 5V DC input
  • Ruggedized and fanless design
  • PCB dimensions: 65mm x 45mm
  • Wide-range operating temperature from -40°C to 75°C
  • NEW
  • Wide Temperature
Form Factor SBC
Processor NXP Cortex®-A53 i.MX8M Plus Lite processor
System Memory 1GB DDR4 on board (option: 2GB)
Flash Memory 4GB eMMC on board (up to 256GB)
Display 2-ch LVDS 8-lane WTB connector
Video Codec N/A
Graphics OpenGL Es 1.1, 2.0, 3.0,3.1
OpenCL 3.0
OpenVG 1.1
OpenGL 4.0
EGL 1.5
Vulkan 1.1
Edge I/O 1x 2-ch LVDS 8-Lane WTB connector
1x microUSB1 power supply only (no data)
1x microUSB2 OTG For 2D Barcode Reader / USB Interface
1x microUSB3 OTG, for debug or image download For USB WIFI Dongle
Internal I/O 2x 10pin 2.0mm pitch pin header
-include 1x I2C, 2x UART, 1x SPI, 1x PWM
1x MicroSD card for memory extension
2x LEDs
Expansion IO N/A
Watchdog 256 levels, 0~128 seconds
Dimensions 65mm x 45mm
Power Input 5V DC input through microUSB1
Operating Temperature Design target: Consumer grade: 0~50°C (design target)
Future option: Industrial grade: -40°C ~ 75°C (head sink required)
Relative Humidity 0 % to 90 % RH at 60°C (non-condensing)
OS Support Yocto 3.0
Linux V5.4.x
Other OS (by request)
Certification CE/ FCC Class-B
DATASHEETS IBR-SMB
CATALOGS RISC-Based Embedded Solutions (Vol.25.05)
