RISC Platform
RP-106

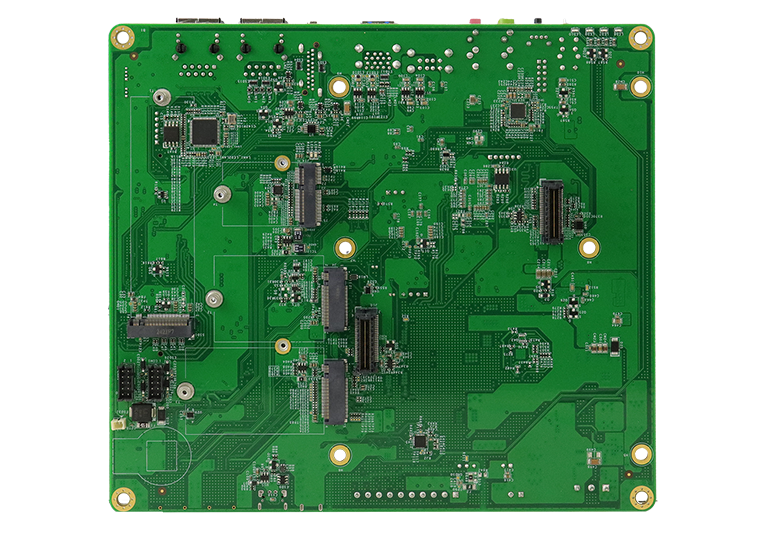

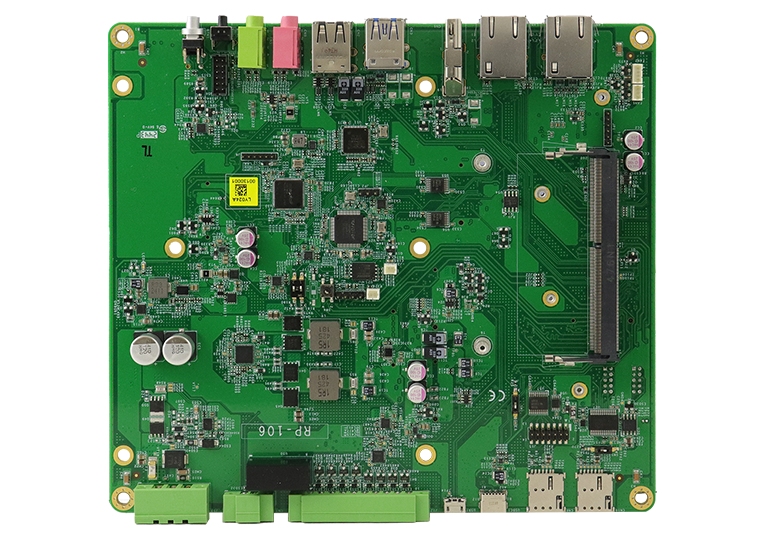

Carrier Board for NVIDIA® Jetson NX/Nano Modules
- 1x DDR4 SODIMM with 260-pin connector for NVIDIA Jetson Orin NX/ Nano Module
- Supports HDMI, Gigabit LAN, audio, USB OTG, USB, COM (RS232/422/485)
- Supports OOB function via I210 LAN port (option)
- Supports +19V~+36V DC-in, reset, power, Recovery & RTC function
- 1x M.2 B-Key 3042 for OOB 4G function
- 1x M.2 B-Key 3052 for 4G/5G connectivity
- 1x M.2 E-Key 2230 for WiFi module
- 1x M.2 M-Key 2280 for NVMe
- 1x Summit connector for IDA-8104
| Form Factor | Carrier Board for NVIDIA Jetson NX/Nano Modules |

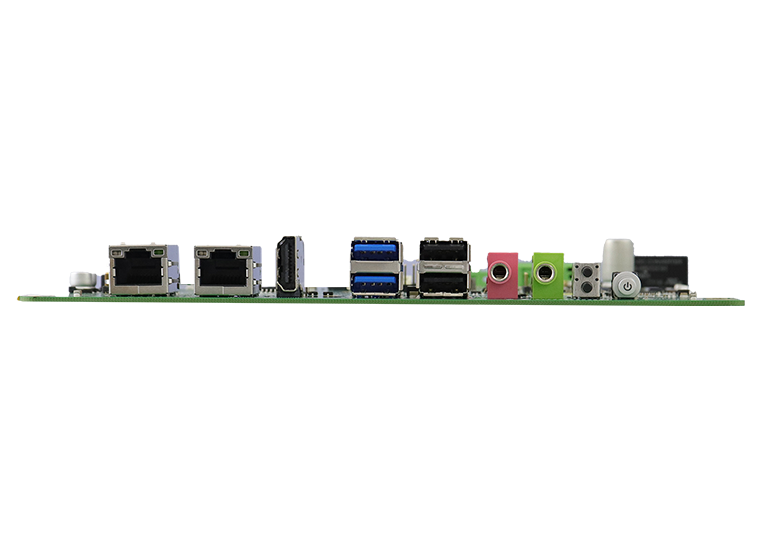

| Edge I/O | 1x DC-in Connector (+9V~+36V) 1x HDMI 2.1 1x Audio Line-in/1x Mic-out 1x UART 2x USB 2.0 host 1x USB 2.0 OTG (Type C) 2x USB 3.2 1x CAN Bus 4x DI + 4x DO 1x RJ45 GbE LAN for OOB function 1x RJ45 GbE LAN 4x LED |
| Internal I/O | 1x Summit connector for PoE card 1x M.2 B-Key 3042 for OOB 4G function 1x M.2 B-Key 3052 for 4G/5G connectivity 1x M.2 E-Key 2230 for WiFi module 1x M.2 M-Key 2280 for NVMe 1x RTC battery |
| Jumpers, Switches & Buttons | 1x Power button 1x Recovery button 1x Reset button |
| Power Input | +9V~36V DC-in |
| Dimensions | 190mm x 170mm (7.4” x 6.7”) |
| Environment | Humidity: 0% to 90% RH at 60° C (non-condensing) |
| Operating Temperature | -20°C ~ +70°C (-4°F ~ 158°F) |
| OS Support | Ubuntu 22.04 |
| Certification | CE/FCC Class-B |
| RP-106 | Carrier Board for NVIDIA Jetson NX 16GB or Nano 4GB Modules, +9V~+36V DC-in jack |
| DATASHEETS | RP-106 |
| CATALOGS | RISC-Based Embedded Solutions (Vol.25.05) |
