RISC Platform

RP-105

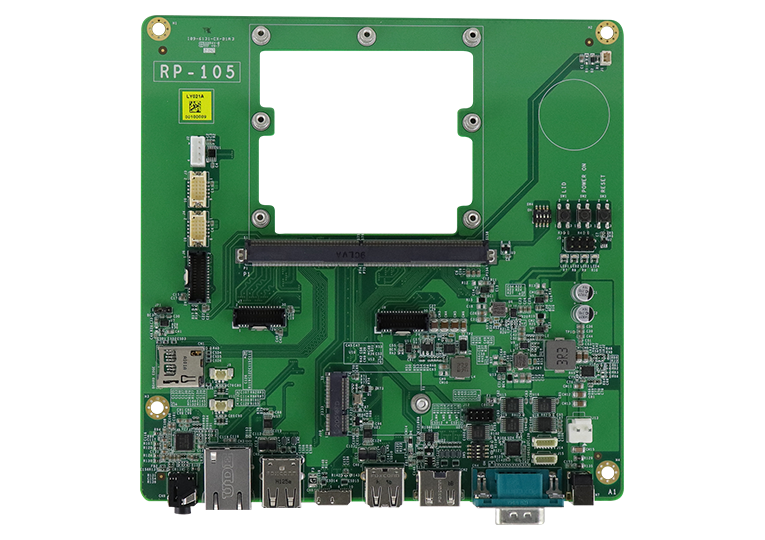

Carrier Board for SMARC™ 2.1 CPU Module

  • Carrier Board for RM-QCS610 SMARC™ 2.1 CPU Module
  • Supports 12V~24V DC-in jack, reset, power, LID button, RTC battery
  • Supports Gigabit LAN, audio, USB OTG, HDMI, COM (RS232/422/485)
  • With Micro SD socket, Mini PCI-E with USB on board
  • Supports TTL, HDMI, MIPI-DSI, MIPI-CSI camera
Form Factor Carrier Board
Compliant with SMARC™ 2.1

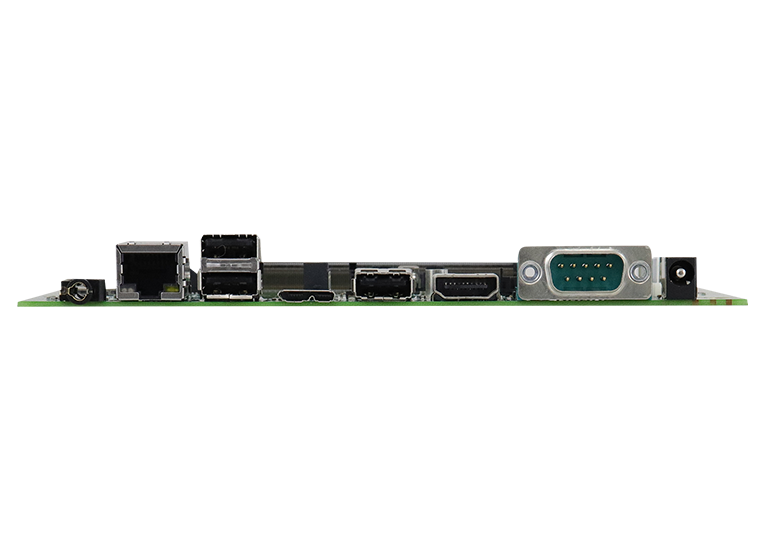

Edge I/O 1x DC-in jack (12V~24V)
1x RJ45 GbE LAN
1x Headphone & Mic
3x USB 2.0 host
1x USB 3.0 host (with USB 2.0/3.0 OTG support)
1x HDMI
1x COM (RS232/422/485)
1x SD slot
Internal I/O 2x CAN bus 2.0B
1x MIPI display power (3.3V)
1x MIPI-DSI
2x MIPI-CSI2
6x GPIOs (3.3 V)
2x RS232 (RX/TX / pin header)
1x I²C
1x I²S
1x M.2 E-Key (2230) (USB 2.0 interface only)
1x Speaker R and L
1x RTC battery
1x TTL (3.3V reserved for debug)
Jumpers, Switches & Buttons 1x Boot select switch (Refer to Qualcomm CRB)
1x Power button
1x Reset button
1x LID button
Power Input 12V~24V DC-in
Dimensions 170mm x 170mm (6.7"x 6.7")
Environment Humidity: 0% to 90% RH at 60° C (non-condensing)
Operating Temperature -30°C ~ +85°C (-22°F ~ 185°F)
OS Support Based on the CPU module
Certification CE/FCC Class A
