RISC Platform

RM-F6 series

Wide-Temperature SMARC™ 1.0 Module with NXP ARM® Cortex-A9 i.MX 6Dual/6Solo Processor

  • i.MX automotive-grade 6Dual/6Solo core processor
  • 1080p hardware encode/decode
  • OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators
  • 1GB DDR3, 4GB eMMC on board
  • Supports 10/100/1000 Mbit Ethernet
  • Supports 24-bit parallel LCD, LVDS & HDMI
  • Supports Linux 3.0, Android 4.3
  • Wide-range operating temperature (-40°C~85°C)
  • Fanless
  • Wide Temperature

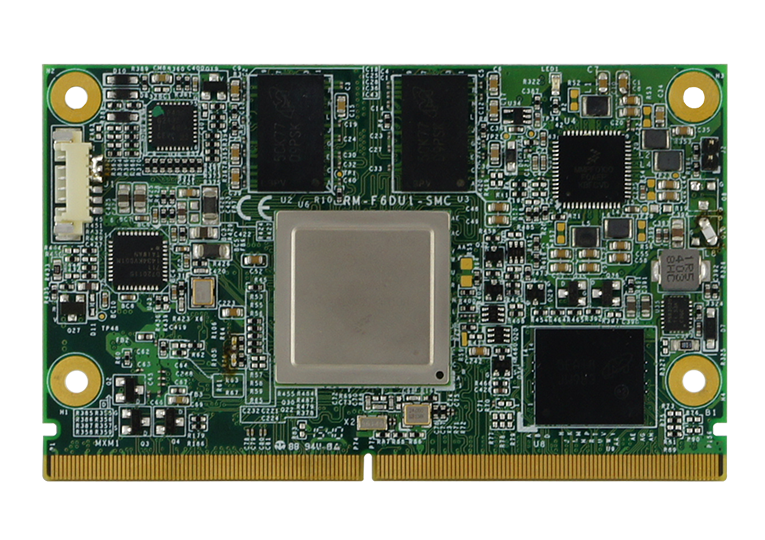

The RM-F6XX1-SMC is a SMARC module powered by the high performance Freescale i.MX 6Dual/Solo processor running 800 MHz. It supports an image capture interface for MIPI cameras, 18/24-bit parallel LCD, LVDS and HDMI interface, as well as a full-HD 1080p hardware video codec engine. It is best suited for mobile and HMI systems, in addition to applications in the multimedia, automotive, medical and consumer markets.


RM-F6XX1-SMC was designed based on SMARC ("Smart Mobility ARChitecture"), a versatile small form factor for computer modules with 82mm x 50mm size that targets applications requiring low power and high scalability. RM-F6XX1-SMC is integrated with 1GB DDR and 4GB eMMC memory and supports Linux 3.0 and Android 4.3.


RM-F6 seriesWide-Temperature SMARC™ Module

The SMARC-EVK1 development kit that also includes a cable kit can be purchased for quick start reference to develop a custom carrier board. The carrier board, RP-102-SMC (3.3V IO voltage), features a broad range of interface options for design development flexibility that include GbE, audio, USB OTG, USB and COM ports on the same side of the board, as well as 2x CAN, 8x GIO, Mini PCIe, Micro SD and SIM sockets. IBASE also provides the carrier board schematics, review service, test reports, and FAE debug service during the engineering development phase.

Form Factor SMARC™ V1.0
Processor NXP i.MX 6Dual/6Solo Cortex™-A9 processor with 512KB L2 cache
System Memory I-grade 1GB DDR3 on board
Flash Memory N/A
Display Supports 18/24-bit parallel LCD & LVDS Interface (Up to1366 x 768)
Supports HDMI interface (1920 x 1080)
Video Codec Multi-format HD1080 video Decode and Encode
Graphics N/A
Audio Interface I²S, SPDIF
LAN 1x GbE LAN
USB 2x USB 2.0 port & 1x USB OTG Interface
Image Capture Interface CSI Interface for MIPI camera
Serial Interface 4x UART, 1x SPI Interface
Media Interface 2x High-speed MMC/SDIO (MMC 8-bit, SDIO 4-bit)
PCI-E 1x PCI-E interface
SATA 1x SATA 2.0 (Dual only)
GPIO 12x GPIO
I²C 3x I²C *(4x I²C in F6SO1)
Others Wireless WCN3980 (optional)
CAN Bus 2x CAN 2.0B
Dimensions 82mm x 50mm (3.2" x 2")
Environment Humidity: 0 % to 90 % RH at 60° C (non-condensing)
Shock: Non-Operating: 1G, 15 mins (x-, y-, z-axis)
Vibration: Non-operating: 3Hz to 500Hz, 15 mins
Operating Temperature -40°C ~ 85°C (-40°F ~ 185°F)
OS Support Ubuntu Linux 11.10
Android 4.3
Certification CE/ FCC Class A
RM-F6DU1-SMC SMARC™ 1.0 Module with NXP i.MX 6Dual 800MHz processor, 1GB DDR3, 4GB eMMC, -40°C~85°C operating temperature
RM-F6SO1-SMC SMARC™ 1.0 Module with NXP i.MX6 Solo 800MHz processor, 1GB DDR3, 4GB eMMC, -40°C~85°C operating temperature
F6DU1-HSD Heat Spreader for F6DU1
F6SO1-HSD Heat Spreader for F6SO1

By becoming an IBASE member, you can have access to the test reports, certifications, 2D/3D drawings and MTBF reports from our member site. Not a member? Join Now!
