Awards

MRD-286 EN50155 Certified AIO 28.6" Bar-Type Panel PC

MPT-1000R Railway Computer System

MPT-8000AR Railway Computer System

VINO2100 Artificial Intelligence Image Recognition Kiosk

SW-101-N Outdoor IP68-rated Waterproof Digital Signage Player

SI-324 UHD 4x4K Digital Signage Player

MAI602-M4D80 Automatic Control Fanless System

MPT-3000RP IP67 Waterproof Railway Fanless System

DRD-037-PC Double-Side Bar-Type Panel PC

UMT-7211 MEDICAL PANEL PC

SI-623-N 3X 4K DIGITAL SIGNAGE SYSTEM

MPT-3000R MULTI-PURPOSE IOT RAILWAY SYSTEM

2 / 3

MRD-286 EN50155 Certified AIO 28.6" Bar-Type Panel PC

The MRD-286 is an EN50155 certified AIO 28.6" bar-type panel PC. It integrates an Intel® Pentium® Processor, powered by a 24VDC or 110VDC power input. Built with an ultra-wide TFT active matrix LCD screen, the system can ideally serve as signage display delivering advertising and providing passengers with the current information on arrival and departure times at targeted areas in the vicinity of airports or train stations. The MRD-286 complies with EN50155 international standards, ready to be deployed in various rolling stock applications where rigorous shock and vibration requirements should be met. Its sunlight readable panel provides enhanced graphical performance (1920 x 540) with a wide viewing angle of 178 degrees, ensuring excellent visibility from any direction. The unit has an IP-65 rated front panel and supports up to 8GB of system memory, a 64GB SSD storage, and useful I/O interfaces including an M12 GbE connector, an RS-232/422/485 port and two USB 2.0 ports.


MRD286 PRODUCT PAGE

MPT-1000R Railway Computer System

The MPT-1000R Intelligent Traffic Image Computer was developed for rolling stock applications, with features that meet IIOV, Intelligent Internet of Vehicle and harsh outdoor environment requirements. The shock-resistant system is powered by an Intel® Atom™ x7 processor, operating in extended temperatures between -40°C and 70°C and with 9V-36VDC power input. It has robust M12 waterproof connectors and waterproof antenna connectors that ensure fault-free data transmission in rail vehicle monitoring & railway track side control box applications. Featuring a unique one-click recovery of peripheral expansion card as well as automatic voltage protection, it is certified with EN50155 and EN45545 fire test standards. Designed for ease of use and maintenance, the innovative MPT-1000R overcomes space constraints and high installation costs, supporting an all-in-one cable-free setup with high-speed connectors that handle power and interface requirements without a glitch.


MPT-1000R PRODUCT PAGE

MPT-8000AR Railway Computer System

The MPT-8000AR embedded system was designed for the Intelligent IoV (The internet of vehicles) market and is certified with EN50155 rolling stock standards and EN45545 fire safety parameters. It has an innovative modular design that satisfies diverse applications with easy peripheral replacement and expansion. The system can be equipped with video cameras and sensors to scan for traffic signs or signals to control speed or to detect static obstacles in time to stop based on data analysis. Vehicle and passenger information can also be transmitted via cloud to the control center for remote monitoring to ensure a safe journey for passengers. The MPT-8000AR features self-debugging and battery power control. GPIO and G-sensor control software Utility with system hardware monitoring technology allows connection to various devices for enhanced reliability and availability. The solution can be extended to intelligent surveillance equipment and vehicle network management systems.


MPT-8000AR PRODUCT PAGE

VINO2100 Artificial Intelligence Image Recognition Kiosk

The VINO2100 is an artificial intelligence image recognition kiosk developed for the AI image recognition market. It is equipped with a high-performance Intel Core CPU and a reliable industrial motherboard populated with both active and passive components that ensure 24/7 data processing and system operation without breakdown. The system supports infrared cameras and high-resolution digital lenses together and deploys the Intel OpenVINO toolkit to speed up image recognition. It has a thin and light weight design, with smooth and attractive streamlined round edge. Following the worldwide outbreak of COVID-19, it can be used to intercept people not wearing face mask and who fail the body temperature test. The system can be installed in train stations, airports, shopping malls, schools or hospitals to maintain social distancing and conduct massive temperature screening. The built-in medical grade camera offers precise body temperature test so won’t mix up with face or drink temperature.

SW-101-N Outdoor IP68-rated Waterproof Digital Signage Player

The SW-101-N is a waterproof digital signage player designed for both indoor and harsh outdoor environments. It is built to withstand dust, water and extreme temperatures in mind, ensuring the system’s stable operation and reliability in harsh industrial environments. It meets IP68 standards, allowing it to handle submersion in water for up to 30 minutes at a depth of 1.5 meters. The black-color waterproof enclosure utilizes a C3 HDMI connector and M12 I/O interface connectors for two USB 2.0, one Gigabit LAN, one RS232, DC power input, and digital I/O. Two antenna N jack type connectors have waterproof design as well. Aside from being fanless, the unit has a wide operating temperature range of -40°C ~ 75°C.


SW-101-N PRODUCT PAGE

SI-324 UHD 4x4K Digital Signage Player

The SI-324 is a digital signage player that supports 4 independent displays with individual 4K resolution and provides flexible settings for video wall configurations. It supports the latest Ryzen™ Embedded V1000 processors and integrates IBASE sole iCONTROL intelligent energy-saving green technology and the Observer remote monitoring technology. It also built in with hardware EDID function.


SI-324 PRODUCT PAGE

MAI602-M4D80 Automatic Control Fanless System

The MAI602-M4D80 is a fanless embedded system designed for motion control applications in the automation market. It provides excellent computing power and has a built-in 4-axis motor control module that meets the performance and positioning accuracy requirements of high-performance servo amplifiers. The system utilizes side openings for entry and exit when routing cables of expansion modules.


MAI602-M4D80 PRODUCT PAGE

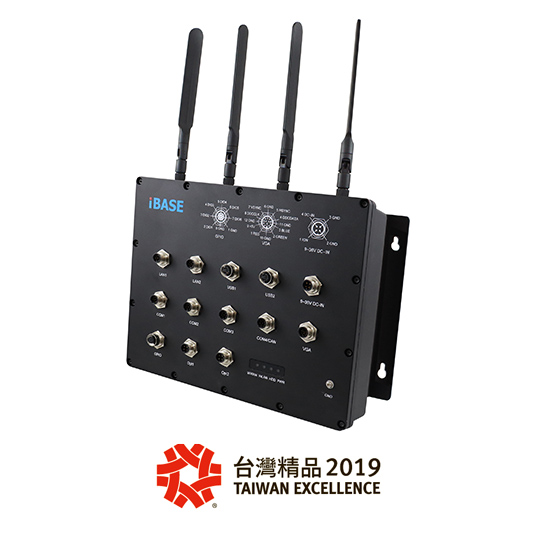

MPT-3000RP IP67 Waterproof Railway Fanless System

The MPT-3000RP is an EN50155-TX certified and IP67-rated embedded system offering water and shock resistance for outdoor applications and was developed to meet IIoV, Intelligent Internet of Vehicle requirements. It features full vehicle battery power control function and employs interchangeable modular power supplies supporting a variety of inputs that is certified to meet various requirements.


MPT-3000RP Product Page

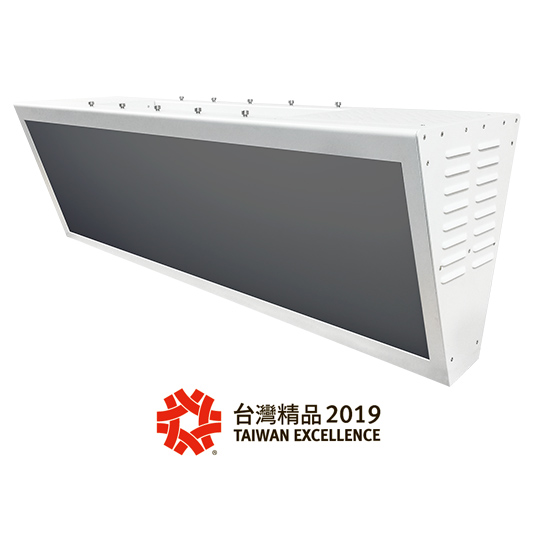

DRD-037-PC Double-Side Bar-Type Panel PC

The DRD-037PC is an ultra-wide 21:6 dual-screen computer designed for smart transportation market applications. It features IP65 dust and water protection and a single motherboard to drive screen display on two sides. With the transportation environment in mind, this product was made to comply with EN50155 rolling stock equipment and EN45545-2 fire protection standards for railway applications.

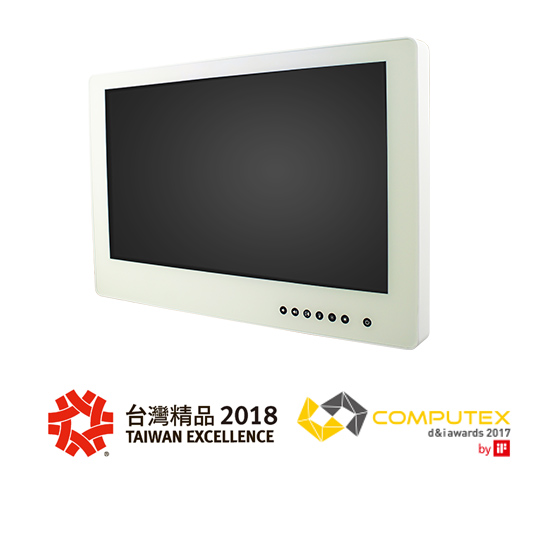

UMT-7211 MEDICAL PANEL PC

2018 Taiwan Excellence Award and 2017 COMPUTEX d&i awards winner, the UMT-7211, is a 21.5" versatile Medical Panel PC designed for hospital patient infotainment system for the clinic, bedside or waiting areas to provide clinical data, medical records management, or simply infotainment. This slender full-flat multi-touch fanless panel PC has IP65 and IP54 protection against particles and water, and capacitive control keypads for power and brightness/volume settings. Supporting 90V~240V AC and isolated Ethernet, the unit has extra I/Os and one PCI-E (x4) expansion slot for customer-desired peripherals. An added feature is an LED reading light bar at the base providing illumination exactly where needed.


UMT-7211 PRODUCT PAGE

SI-623-N 3X 4K DIGITAL SIGNAGE SYSTEM

2017 COMPUTEX d&i awards winner, the SI-623-N, is a 3x 4K UHD digital signage system designed for digital menu board and multi-screen video wall applications. This fanless system features three independent HDMI outputs with up to 4K (3840 x 2160) @60p. It comes with hardware EDID simulation and software setting mode to prevent screen convergence problems and issues due to cable disconnection or failure to identify software settings. The unit is also integrated with IBASE's unique iSMART intelligent energy-saving technology. Its slim chassis allows it to perfectly hide behind small spaces of the screen to save space.

MPT-3000R MULTI-PURPOSE IOT RAILWAY SYSTEM

2016 Best Choice Award winner, the MPT-3000R, is a multiple-purpose IoT railway system specifically designed for railway transportation applications. Featuring a cable-less power module and network communication capabilities, the fanless MPT-3000R supports dual WAN slots that provide redundant wireless communication. Unlike competing products with all-in-one construction in the market, this innovative system is designed with a separate cable-less power module that can self debug and is swappable based on different power requirements. Operating in temperatures from -40°C to 70°C, the unit has built-in G-sensor shock protection that can be adjusted according to the dynamic and environmental conditions that prevail.


MPT-3000R PRODUCT PAGE
