Digital Signage Player

SP-63ER

8th Gen Intel® Core™ Desktop Processor Video Wall Signage Player with MXM Graphics and up to 16x HDMI

  • iSMART intelligent energy-saving & Observer remote monitoring technologies
  • Perfect for displaying 8K/12K video wall or menu board contents
  • Supports 8th Gen Intel® Core™ Desktop Processors
  • Up to 16x HDMI 1.3 (w/o Audio) with built-in hardware EDID emulation function
  • Various Video Wall combination settings
  • Compact and Robust Design
  • iSMART
  • Observer
  • Intel vPro PLATFORM
  • 2021 Taiwan Excellence

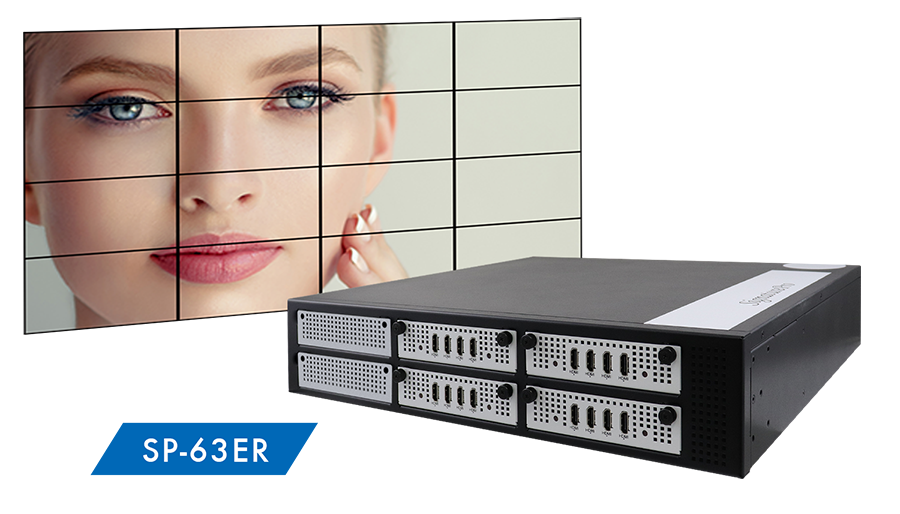

The IBASE SignaturePro SP-63ER multi-port video wall signage player implements 8th Gen Intel® Core™ desktop processor with NVIDIA MXM graphics solution. It comes with flexible TV wall configuration and resolution settings and hardware EDID simulation features. The system is the thinnest and lightest 16x HDMI output signage player in the industry to date. Not only does it have a sleek and compact design, it also provides unparalleled 3D graphics performance supporting up to 7680 x 4800 (4x4 arrangement) or 153600 x 2400 (8x2) video wall resolution.


Far more superior than two-port or four-port HDMI multi-display signage players in the market today, the SP-63ER enables optimized video streaming and multi-display expansion to drive up to 16 screens. The platform can also be integrated with Intel® Distribution of OpenVINO™ toolkit, allowing future expansion with analytics, using neural network inference and deep learning technology for advanced AI workload.


Perfect for displaying 8K/16K video wall or menu board contents, the SP-63ER with the hardware EDID emulation can reduce installation and maintenance time and cost. The system has IBASE unique iSMART energy-saving technology that enables power on/off scheduling and power resume functions, power on/off scheduling, power resume, low-temperature guardian and intelligent system recovery that reduces maintenance cost, enhances system stability and ensures long-term reliability. Furthermore, it offers a variety of wireless communication module expansions for WiFi, Bluetooth and LTE.

System Mainboard MBD63E
CPU 8th Gen Intel® Core™ i7/i5/i3 Desktop Processors, up to 4.7GHz
CPU Socket LGA1151
Chipset Intel® Q370 PCH
Memory 2x DDR4-2666/ 2400 DIMM, Max. 64GB
Graphics Intel® HD Graphics P630/ MXM RTX Graphics card
LAN LAN 1: Intel® I219LM GbE
LAN 2: Intel® I211AT/ I210AT GbE
Expansion Slots 1x Mini PCI-E
1x M.2 M-Key (2280)
1x M.2 E-Key (2230)
1x MXM slot (for NVIDIA Graphics card)

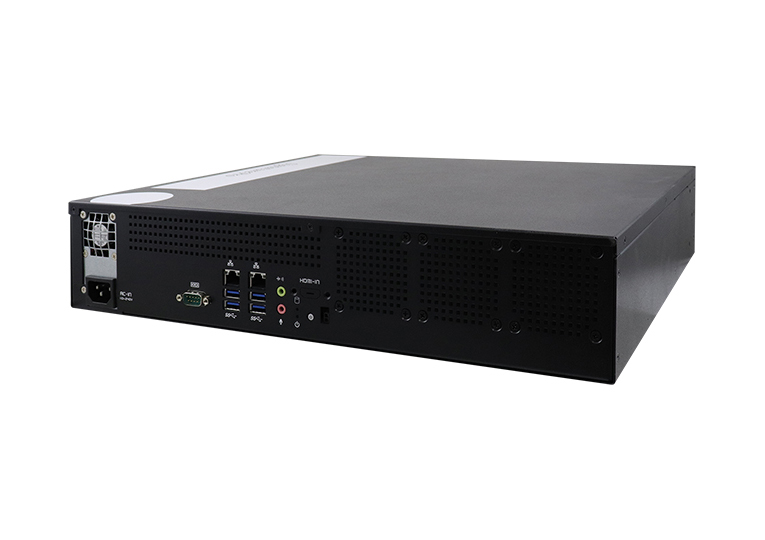

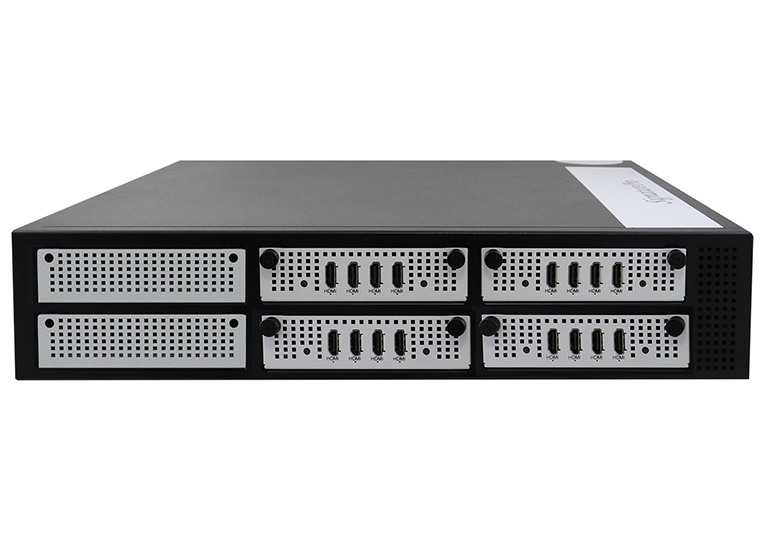

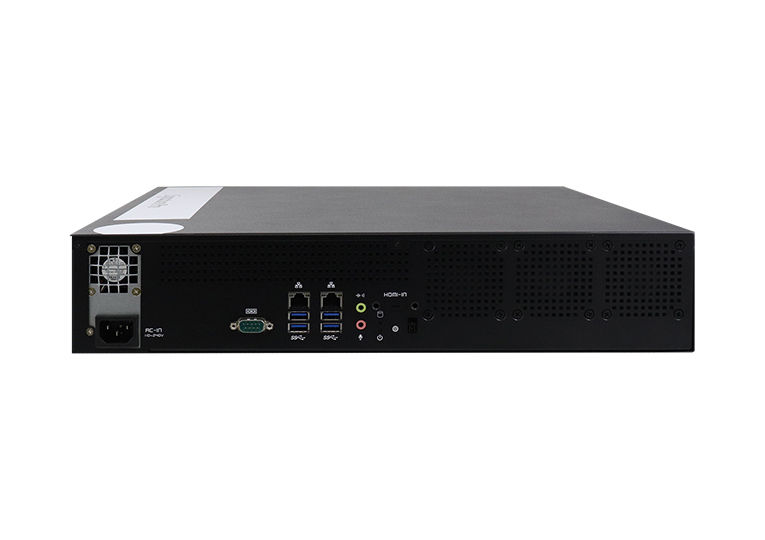

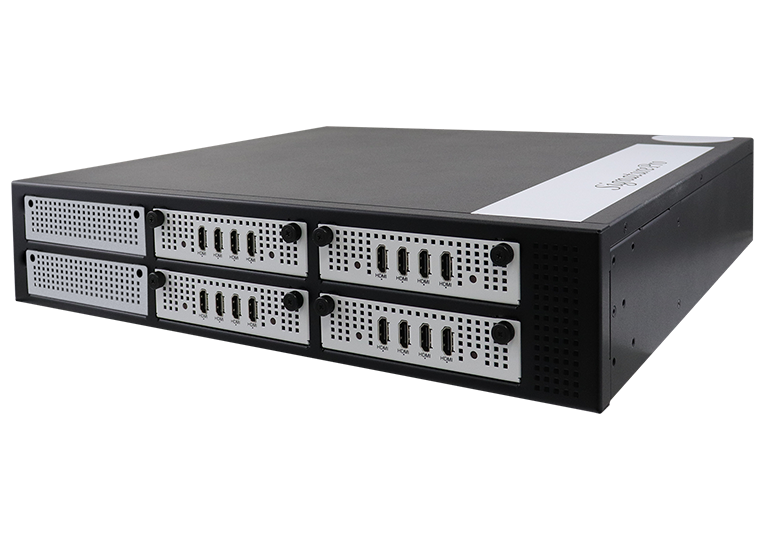

I/O Interface Up to 16x HDMI 1.3 with hardware EDID emulation (with RTX A2000 MXM Graphics card)
4x USB 3.1 ports
1x USB 3.0 ports
2x RJ45 for Gigabit LAN
1x D-Sub for RS232
2x Audio connectors for Line-out/Mic-in
1x Power/HDD LED
1x Power button
1x AC power inlet
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement AC 110V ~ 240V
Construction SGCC
Weight 9.5Kg (20.9lbs)
Chassis Color Black & white
Storage 2x SATA III 2.5" HDD Dock (supports RAID 1)
Power Supply AC 110V~240V
Mounting Standard system bracket
Dimensions 395mm(W) x 438mm(D) x 88mm(H)
15.5" (W) x 17.2" (D) x 3.46" (H)
Operating Temperature 0°C~45°C (32°F~113°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 5~90% @ 45°C, (non-condensing)
Vibration mSATA: 5 grms / 5~500Hz / random operation
Certification CE, FCC Class B, cULus
Operating System Windows 10 IoT Enterprise(64-bit)
SP-63ER-16 Intel® Core™ i7-8700 Processor (12M cache, up to 3.2GHz), 1x MXM NV RTX A2000 8G GDDR5X 256-bits GPU card, 16x HDMI output, 2x 8GB DDR4-2666/2400 SO-DIMM, 2x 128GB SATA III 2.5” HDD Dock, 850W PSU
