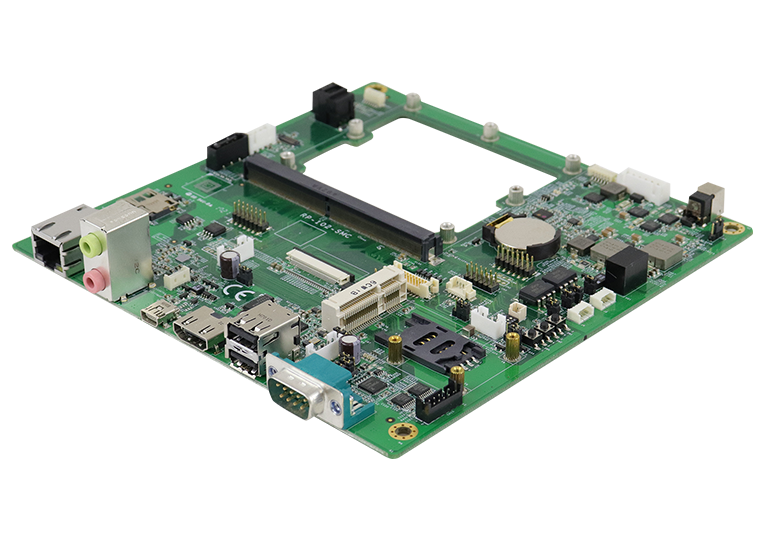

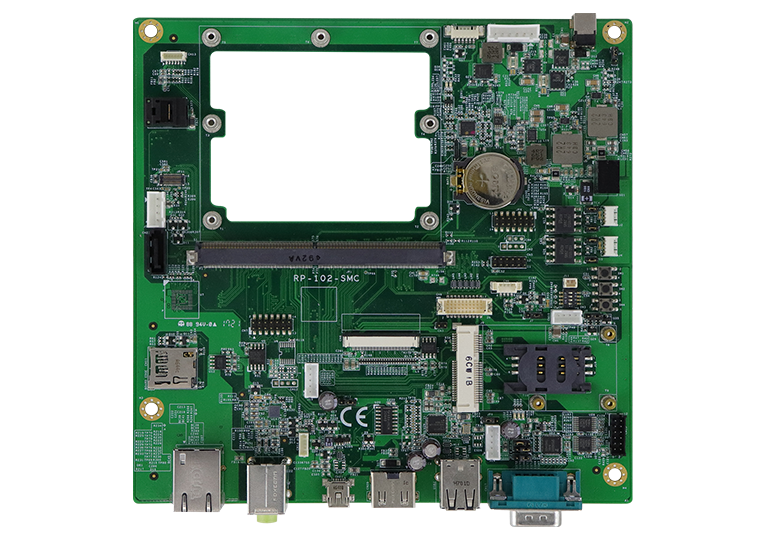

RISC Platform

RP-102-SMC

Carrier Board for SMARC™ 1.0 CPU Module

  • For SMARC™ 1.0 CPU Modules
  • Supports 19V DC-in, reset, power, RTC function
  • Supports Gigabit LAN, audio, USB OTG, HDMI, COM (RS232/422/485)
  • With Micro SD socket, Mini PCI-E with USB, SIM socket on board
  • Supports 2x isolated CAN transceiver, TTL, LVDS, HDMI, MIPI-CSI camera
  • Wide-range operating temperature (-40°C~85°C)
  • Fanless
  • Wide Temperature
Form Factor SMARC™ 1.0 Carrier Board

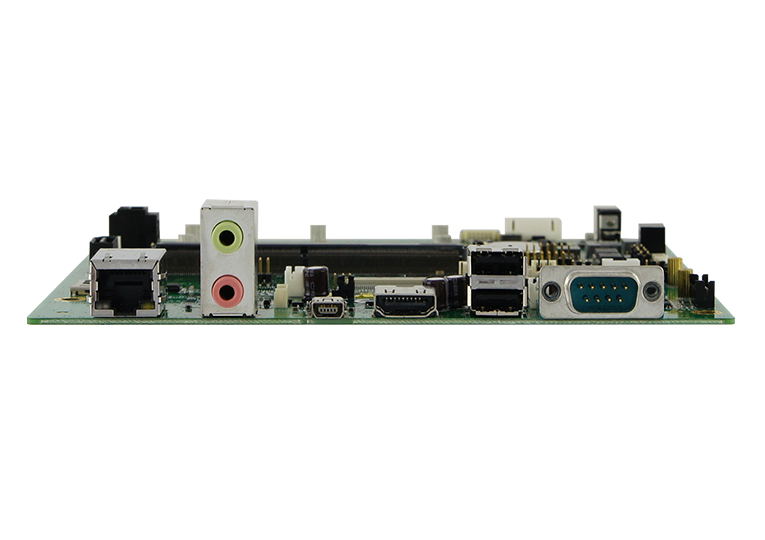

Edge I/O 1x DC-in jack
1x RJ45 GbE LAN
1x Microphone + Headphone
2x USB 2.0 host
1x USB OTG
1x HDMI
1x COM (RS232/422/485)
Internal I/O 2x CAN bus 2.0B
1x 18/24-bit single CH LVDS
1x 18/24-bit TTL box header
1x LCD DDC (I²C)
1x LCD backlight connector
1x CSI-MIPI
2x USB 2.0 host
8x GPIO pin header
2x RS232 box header
1x SIM socket
1x SPDIF
1x Speaker box header
1x Micro-SD socket
2x I²C
1x SATA II
1x Full-size Mini PCI-E with USB interface
Jumpers, Switches & Buttons 1x Boot media select switch (SD/eMMC)
1x Reset button
1x Power button
1x GPI button
1x RS232/422/485 (by jumper selection)
1x Backlight power jumper
Power Input 19V DC-in
Dimensions 170mm x 170mm (6.7" x 6.7")
Environment Humidity: 0% to 90% RH at 60° C (non-condensing)
Vibration: Non-operating, 3Hz to 500Hz, 15mins
Operating Temperature -40°C ~ 85°C (-40°F ~ 185°F)
OS Support Based on the CPU module
Certification CE/FCC Class A
RP-102-SMC Carrier Board for SMARC™ 1.0 Modules,19V DC-in, Mini-ITX, 2x CAN, Mini PCI-E with USB, Resistive touch header (4-wire), 2x USB header,1x I²C header, 18/24- bit LVDS,TTL connector, Line in/ Line out, EEROM, CSI MIPI bus, 8x GPIO, 2x RS232,1x RS232/422/485, VDDIO=3.3V
