RISC Platform

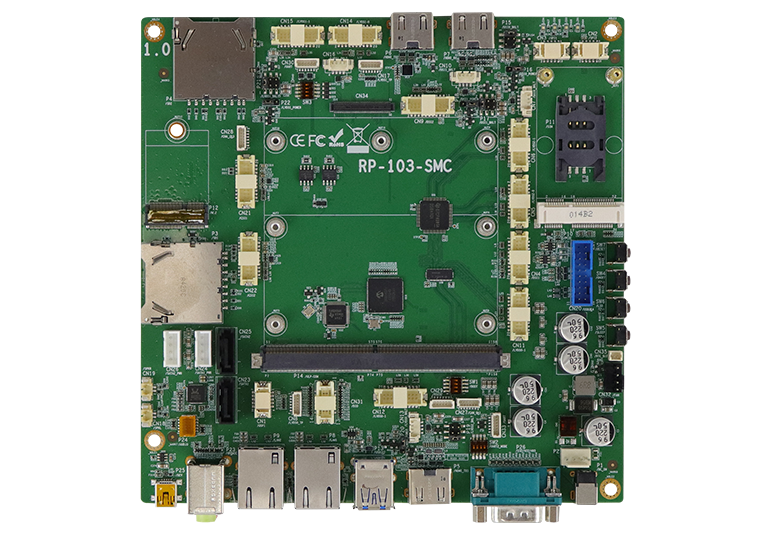

Carrier Board for SMARC™ 2.1 CPU Module

  • Carrier Board for RM-N8M and RM-N8MMI series SMARC™ 2.1 CPU Module
  • Rich peripheral I/O support
  • Complete system available for evaluation
  • Fanless
  • Wide Temperature
Form Factor Carrier Board Compliant with SMARC™ 2.0

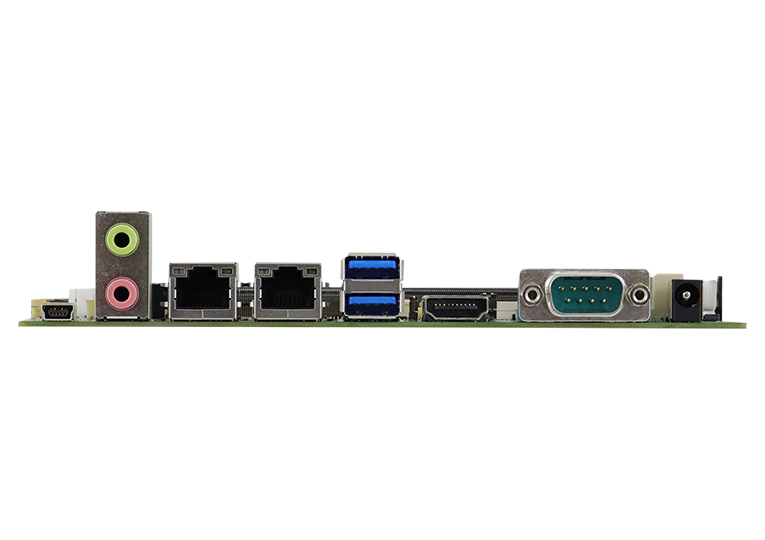

Edge I/O 1x 19V~24V DC-in Jack
2x RJ45 Gigabit LAN (one for RM-N8 only)
2x USB3.0
1x OTG Micro USB2.0
2x HDMI TX (one for RM-N8 only)
1x HDMI RX (for RM-N8 only)
1x Headphone & Mic
1x COM (RS232/422/485 by switch)
2x SD slot (one for RM-N8 only)

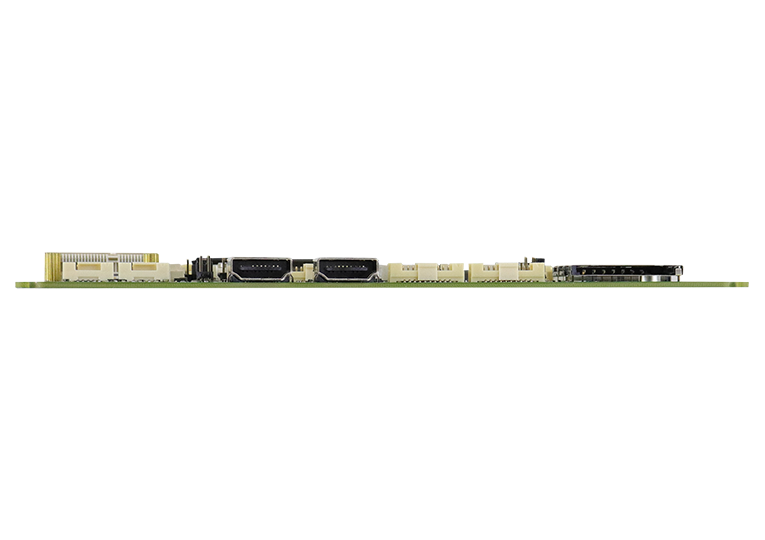

Internal I/O 1x 19V~24V DC-in header
1x 12V Fan header
4x CAN bus 2.0b (three for RM-N8 only)
3x 18/24-bit dual channel LVDS (two for RM-N8 only)
4x LCD backlight
2x MIPI-CSI2 (one for RM-N8/RM-N8M only)
2x MIPI-DSI (one for RM-N8 only)
2x USB 3.0
12x GPIOs
2x RS232 (RX/TX only)
2x I2C
2x SATA III and power (one for RM-N8 only)
1x I2S
1x Full-size Mini PCI-E
1x SIM socket
1x M.2 E-Key (2230)
1x Speaker out (R/L)
1x RTC battery
1x 4-Wire UART
Jumpers, Switches & Buttons 1x Boot select switch
1x I/O and display select switch
1x Power button
1x Reset button
1x LID button
1x Sleep button
4x Backlight power (3V3/5V/12V) jumper
3x LCD power 3V3/5V jumper
Power Input N/A
Dimensions 170mm x 170mm (6.7" x 6.7")
Environment Humidity: 0 % to 90 % RH at 60° C (non-condensing)
Shock: Non-Operating: 1G, 15 mins (x-, y-, z-axis)
Vibration: Non-operating: 3 Hz to 500 Hz, 15 mins
Operating Temperature -40°C to 85°C (-40°F to 185°F)
OS Support Depends on CPU Module
Certification CE/FCC Class-B
RP-103-SMC Carrier Board for SMARC™ 2.1 Modules, 19V~24V DC-in jack, 1x RJ45 LAN, 1x OTG Micro USB2.0, 1x Headphone & Mic, 1x 12V Fan header, 1x CAN bus 2.0b, 1x full-size mini PCI-E, 1x LCD backlight, 4x USB 3.0, 12x GPIOs, 2x RS232 (RX/TX only), 1x I2C, 1x I2S(Audio), 1x SIM socket, 1x M.2 E-Key (2230),1x Speaker out (R/L),1x RTC battery, 18/24-bit Dual Channel LVDS, 1x HDMI 2.0 1x COM (RS232/422/485) or 4-Wire UART, 1x QSPI,1x MIPI-CSI, 1x MIPI-DSI, 1x SATA III and power
